A Gantt chart lays out a project as a timeline. Each task gets a row, and a bar runs across the calendar from its start date to its end date. Viewed together, the bars show what happens when, how long each piece takes, which tasks overlap, and where one task has to wait for another. Project managers, construction teams, IT teams, event planners, and students organizing assignments all use Gantt charts. They turn a list of tasks into a schedule people can see.

Other templates in this library that often go with this one are the Top 16 Organizational Chart Templates, the Sample Weight Loss Chart Templates and the Color Wheel Chart PDF Templates.

Build the task list before the chart

A Gantt chart is only as good as the task list behind it. Break the project into tasks small enough to estimate, usually a few days to a couple of weeks each. Group related tasks into phases, such as planning, design, build, testing, and launch, for a software or construction project. Give each task a short name, an owner, and an estimated duration. Note any milestones, such as approval dates, deliveries, or a launch, as zero-length points rather than tasks.

Choose a sheet that suits your project

Get FREE Gantt Chart Excel Templates Below

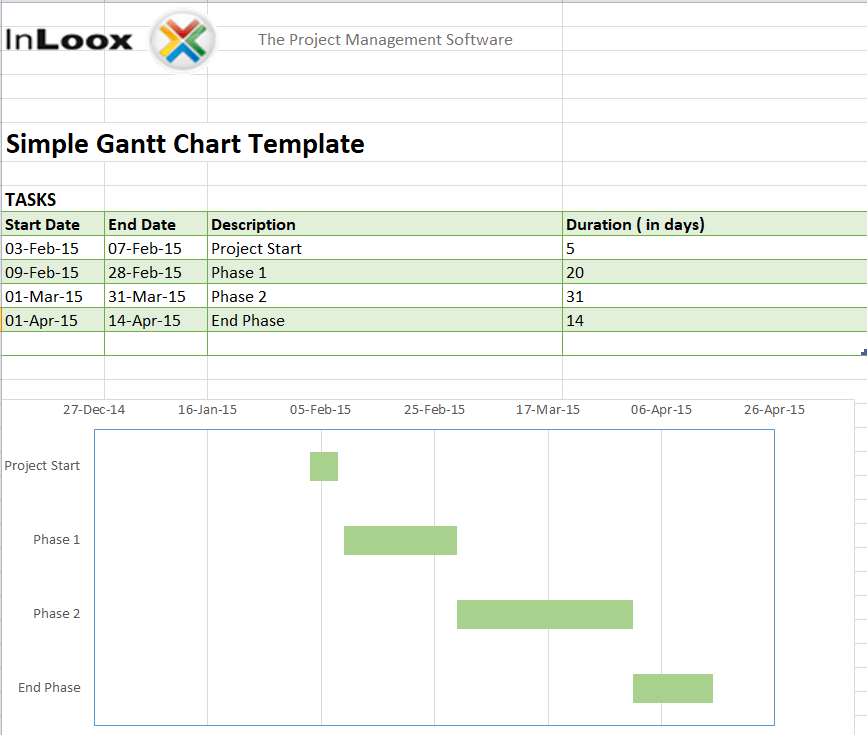

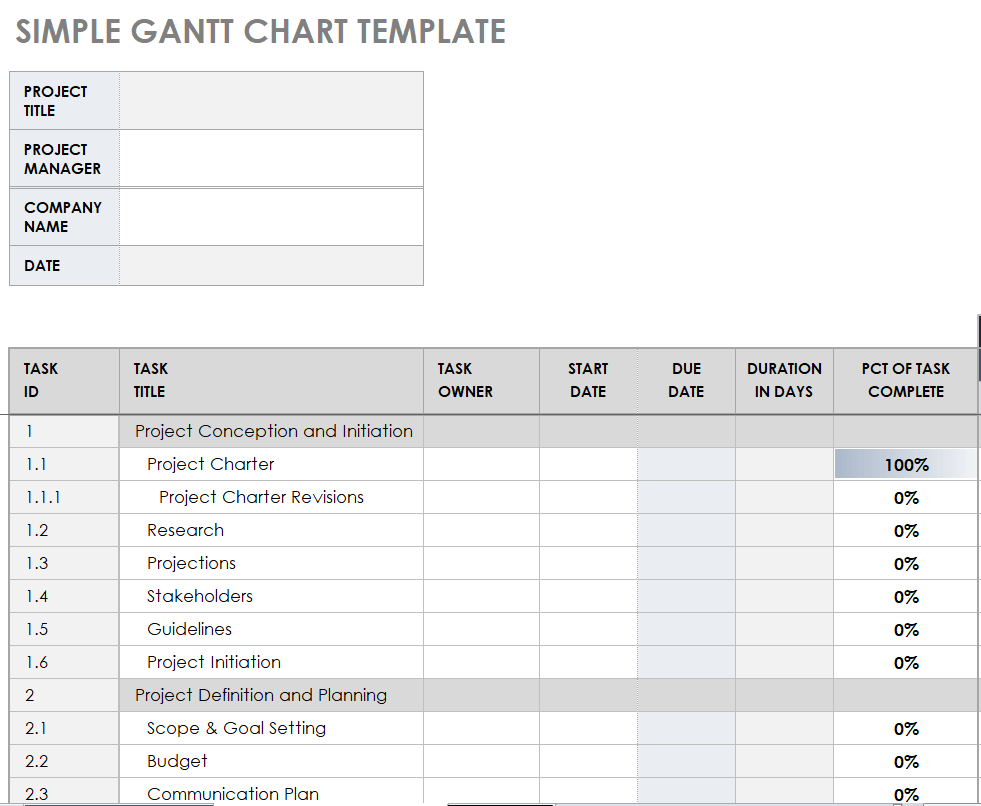

Simple Gantt Chart Template Excel

File Size: 22 KB

Free Printable Gantt Chart Template

File Size: 29 KB

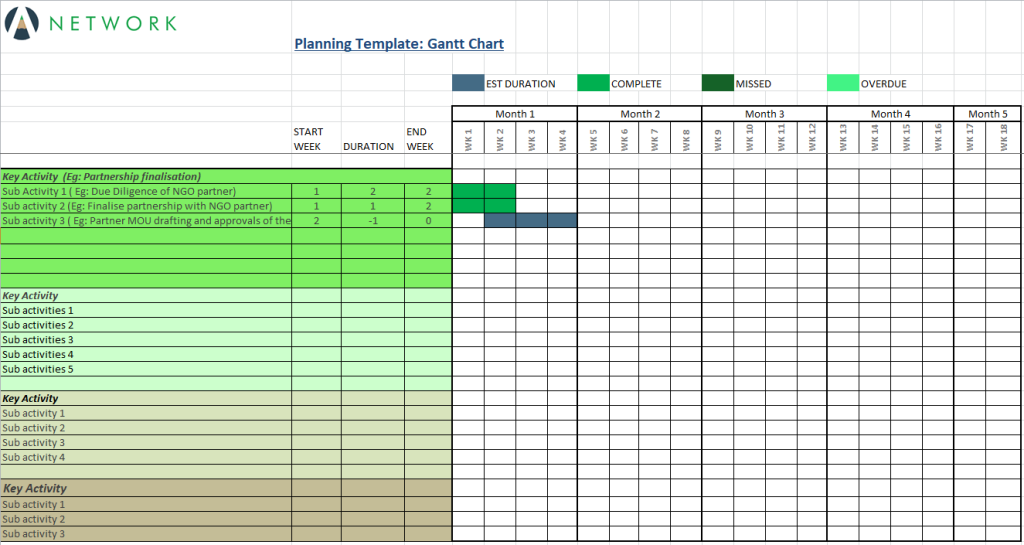

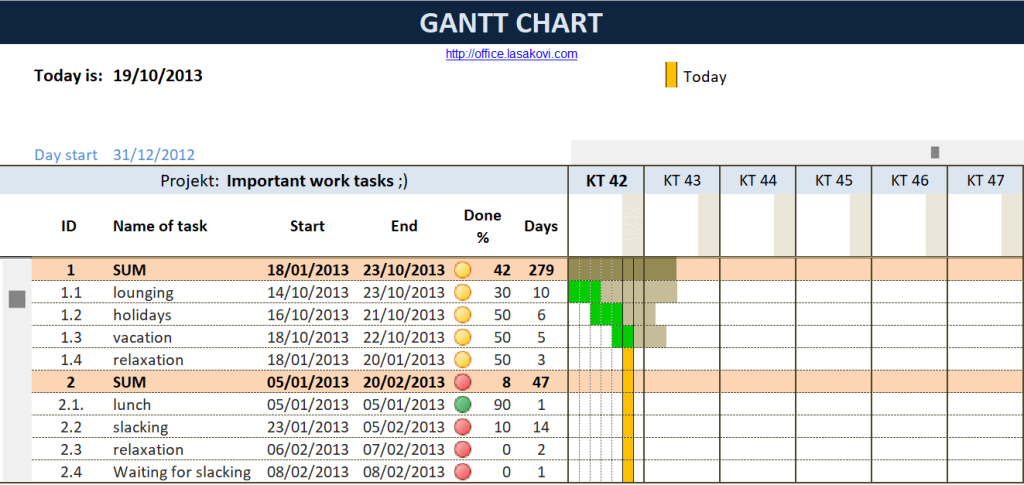

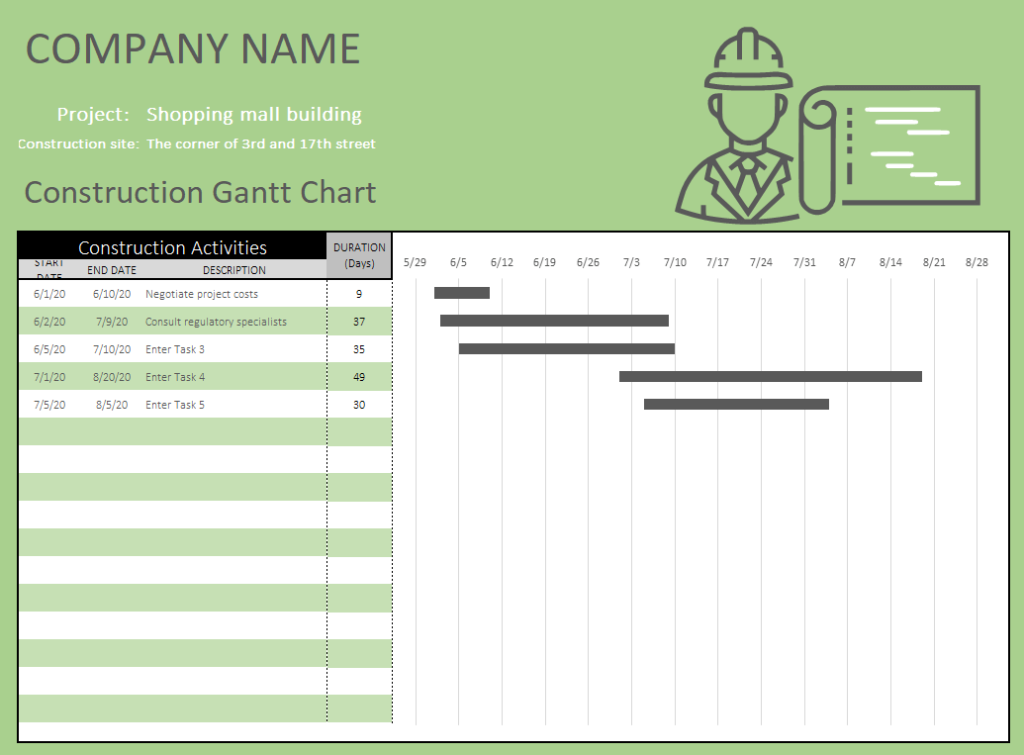

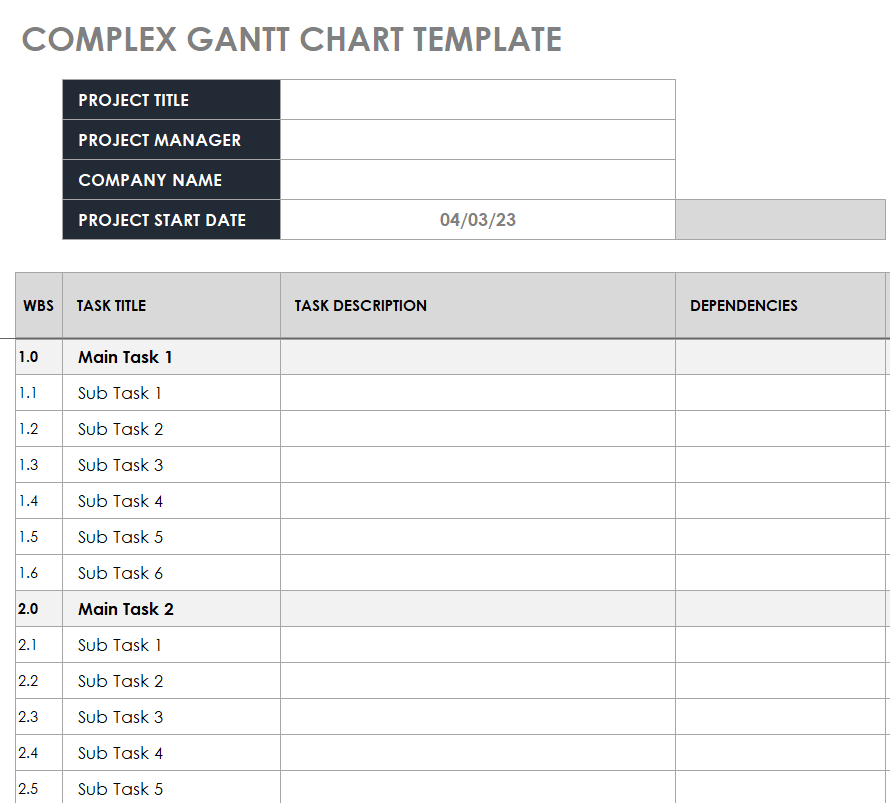

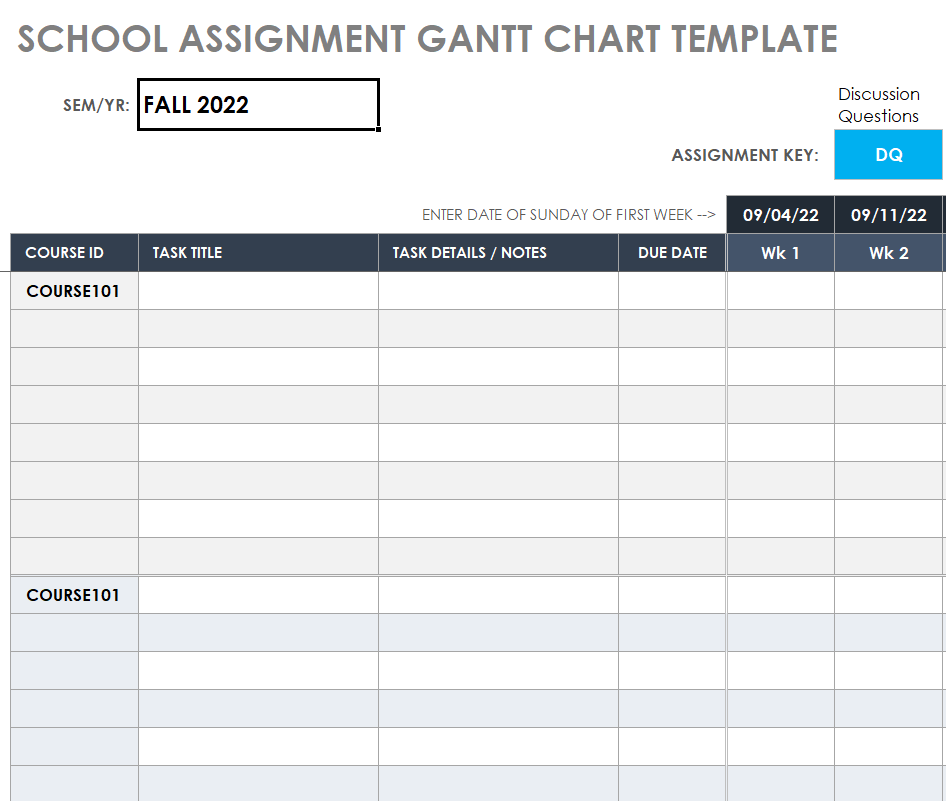

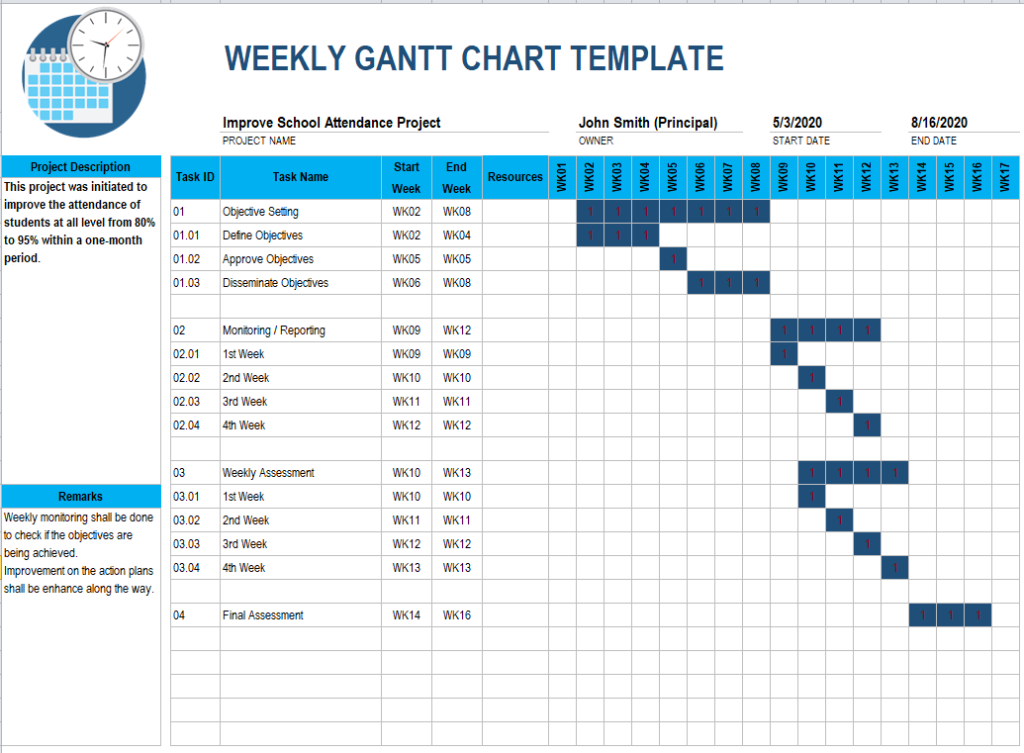

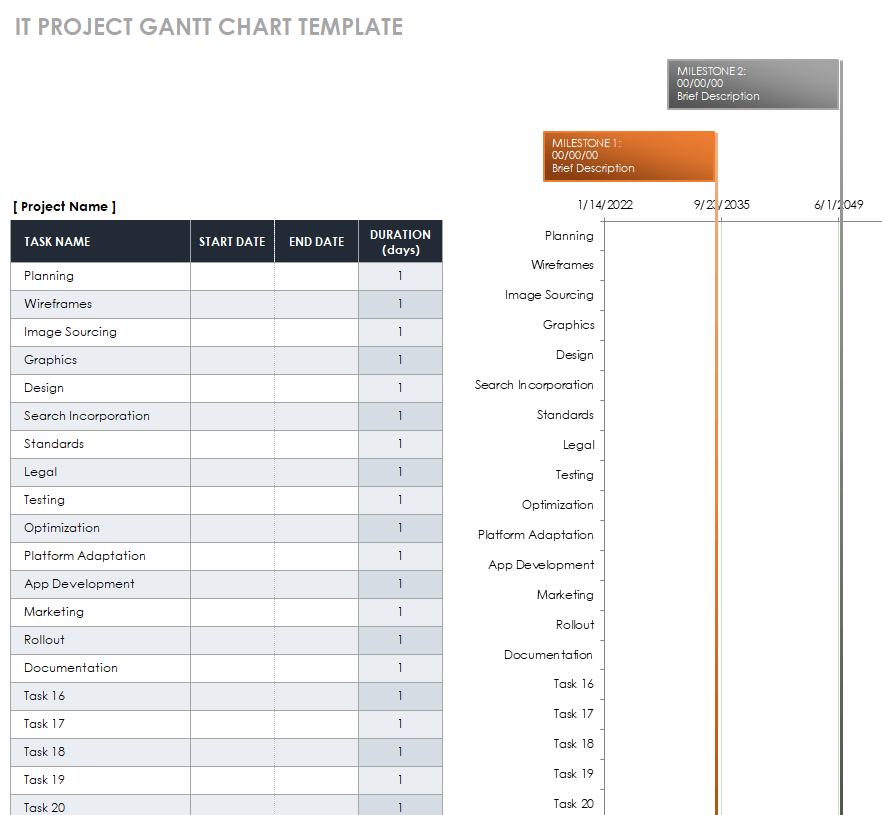

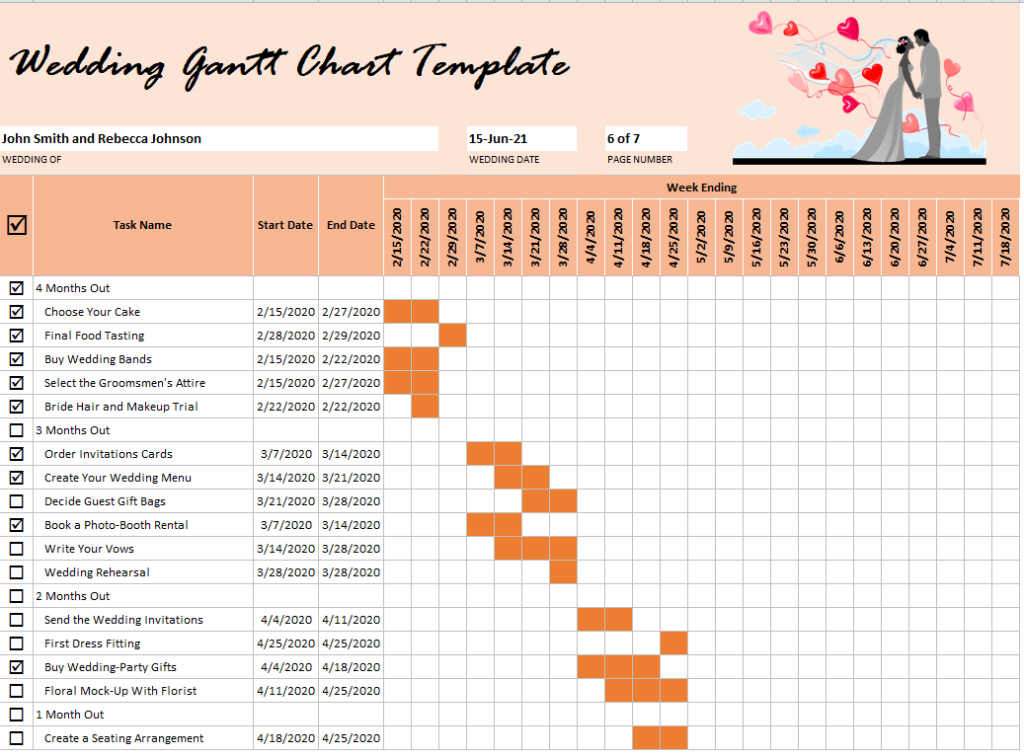

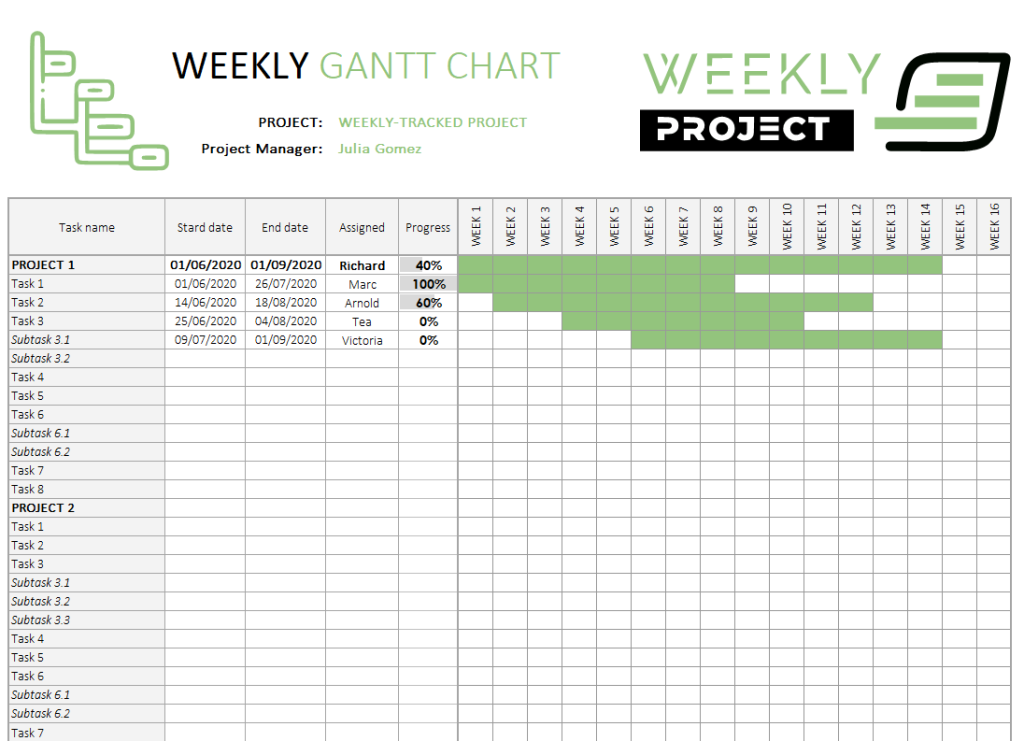

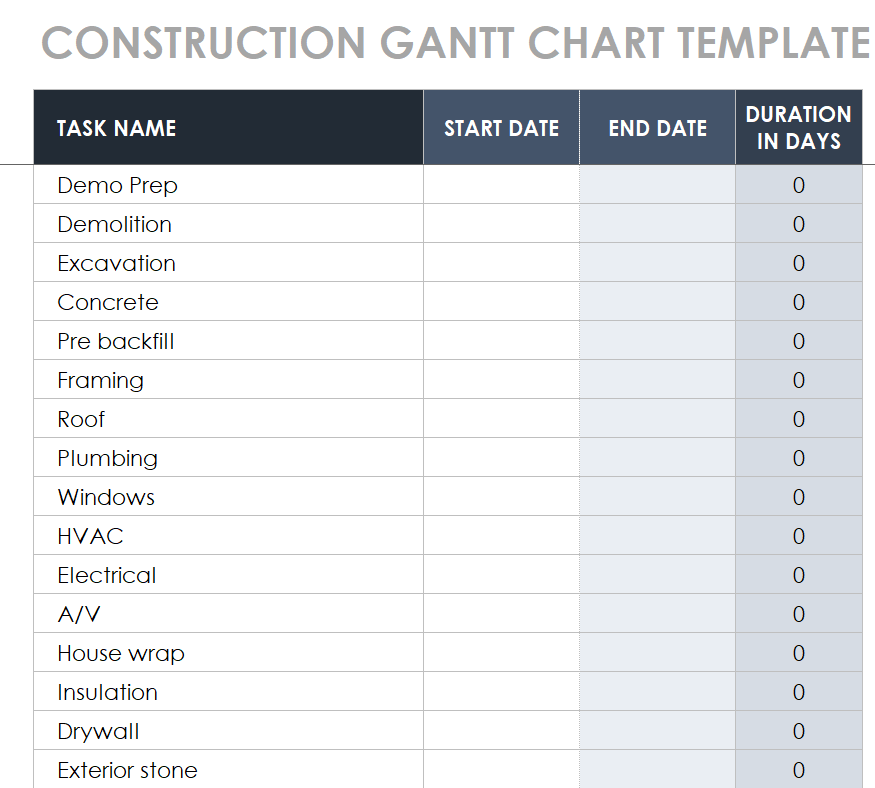

The samples include standard and complex charts, construction, IT, school assignment, and wedding versions, and weekly layouts. Look at the time scale in each preview: daily columns suit short, detailed projects, while weekly columns suit longer ones. Check which columns sit to the left of the bars, such as task, owner, start, end, duration, and percent complete. Look too at whether bars appear as shaded cells. Do not assume bars or durations update automatically when you change a date. Open the file and test one row. If nothing changes, shade the cells by hand and work out durations yourself.

Enter dates and dependencies

Enter a start date and end date for each task, or a start date and duration, and calculate the other by hand if the sheet does not. Be consistent about whether durations count working days or calendar days, and note any holidays or shutdowns.

Next, identify dependencies. A finish-to-start dependency is the most common: task B cannot start until task A finishes. Note dependencies in a column, by task number, even if the sheet does not draw arrows. When an early task slips, these notes tell you which later tasks must move.

Find the critical path

The critical path is the longest chain of dependent tasks from start to finish. Any delay on it delays the whole project. Trace it by following dependencies from the first task to the final milestone and adding durations by hand. Highlight those rows or bars in a different colour. Tasks off the critical path have some slack, so they can slip a little without moving the end date. Knowing which is which helps you decide where to focus attention and resources.

Update the chart as work happens

A Gantt chart is a living plan. Update it at regular intervals, often weekly. Mark progress on each task, adjust dates when tasks finish early or late, and move dependent tasks accordingly. Keep a copy of the original baseline, either a saved version or a second row of bars, so you can show how the schedule has changed. Share the updated chart with the team, and point out what has moved and why.

Present the chart to different audiences

The same plan may need different views. A sponsor or client usually wants phases, key milestones, and whether the end date is safe. Team members want the detailed rows that affect their own work this week and next. Before sharing, hide or group detailed rows for the summary view, and add a short note explaining any changes since the last version. If you print the chart, check the page setup so the timeline does not split awkwardly across pages and the task names stay readable. Label the date the chart was last updated in a visible place, because an out-of-date chart that looks current can mislead people more than having no chart at all.

Questions about planning with a Gantt chart

How many tasks are too many for one Gantt chart?

When people can no longer read the chart at a glance, it has too many rows. For larger projects, keep a summary chart showing phases and major milestones for sponsors. Keep detailed charts for each phase or team. The exact number depends on the audience, but the summary should usually fit on one screen or printed page.

How should part-time resources be shown on the chart?

Add an owner column, and consider noting availability, for example “two days a week”, beside the task. Stretch the task’s duration to reflect real availability rather than full-time effort. If one person is assigned to overlapping bars, check whether that is realistic, and adjust dates or reassign work.

Can a Gantt chart replace regular team status meetings?

It supports them but rarely replaces them. The chart shows dates and progress, while conversations reveal blockers, risks, and decisions the chart cannot capture. Many teams use the updated chart as the agenda for a short weekly meeting, focusing on tasks that have slipped or are on the critical path.
